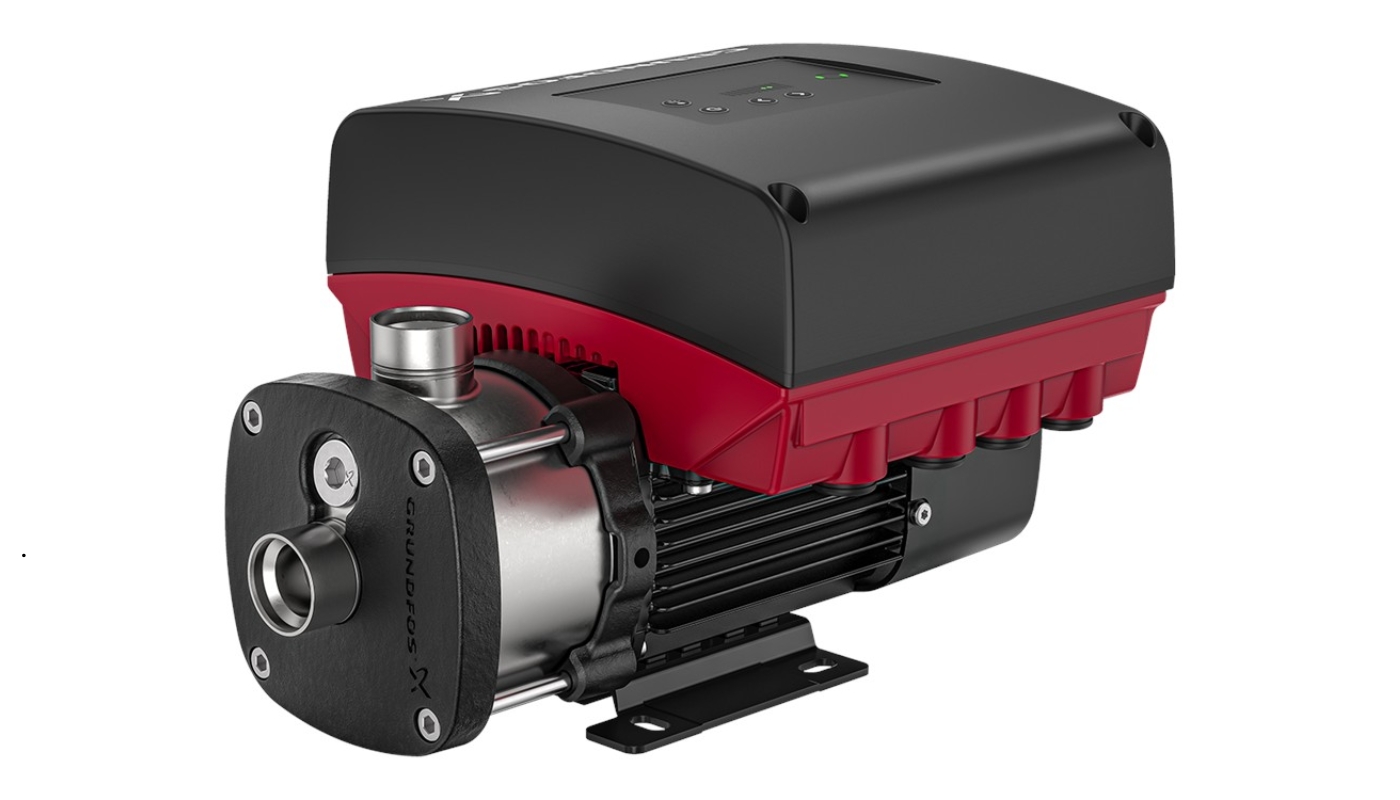

CME pumps

 History & Evolution

The term CME is often associated with Grundfos’ line of horizontal multistage pumps that include an integrated frequency converter and control logic. In the CM / CME family, the CM version is the “basic” multistage pump with a standard motor, while the CME version adds intelligence, variable speed control, and greater flexibility.

Over time, the integration of control electronics, sensors, and automation into pump units has become more common. The CME is a mature product line that blends robust hydraulics with electronics.

Construction and Key Components

A CME pump typically comprises:

• Pump body / casing: usually a multistage centrifugal arrangement, horizontally mounted.

• Impellers & diffusers: staged to multiply head.

• Shaft, bearings & seals: designed to handle rotational loads and fluid forces.

• Motor: electric motor, but integrated with control hardware.

• Integrated frequency converter / VFD: built into or attached to the pump, enabling variable speed operation.

• Control module / PLC / electronics: for closed-loop control, protection, monitoring.

• Sensors: pressure, temperature, flow, sometimes built-in.

• Cooling & ventilation: for the motor and control electronics.

Because the electronics and mechanical parts are packaged together, the design is often more compact and optimized for minimal wiring and simpler installations.

How It Differs from CM / Other Multistage Pumps

• Motor & Control: CM pumps use a standard fixed-speed motor, whereas CME pumps include an integrated frequency converter and control logic.

• Efficiency: CME can adapt speed to demand, reducing wasted energy.

• Flexibility: Variable control allows better matching to system curves, especially in systems with variable flow demand.

• Installation complexity: CME may reduce external control panel wiring, but demands proper electrical and control design.

• Cost & sophistication: CME tends to be more expensive upfront, but can yield savings over lifetime.

In summary, CME is a “smart” multistage pump category—fusing the strengths of automatic control with proven hydraulics.

 Hydraulic Flow & Multistage Action

Inside a CME pump, water (or fluid) enters the axial inlet port, passes through successive impellers and diffusers, each stage increasing pressure (head), and exits via a radial outlet port. This multistage design allows high pressures or heads without excessively high single impeller speeds.

Because the pump is horizontal, careful alignment and support are needed to avoid vibration or misalignment.

Integrated Electronics / VFD / Control

The integrated variable frequency drive (VFD) is central to the CME’s operation. Rather than running at full speed all the time, the motor can vary in RPM to match the system demand:

1. Setpoint / control: A desired pressure or flow is set.

2. Feedback sensors: Pressure, flow, or differential sensors feed measurements back.

3. Controller / algorithm: The control electronics adjust motor speed to maintain the setpoint, reduce surge, avoid overshoot, etc.

4. Soft start / ramping: The motor speeds up gradually to avoid mechanical stress or electrical surges.

5. Protection: Overcurrent, overtemperature, dry run, cavitation, etc.

In the CME 5 Plus variant, for instance, a pressure sensor and small expansion tank are included to mitigate water hammer during fast changes.

Because the hydraulic and control elements are integrated, installation is simpler and wiring is reduced.

Protection Mechanisms & Safety Features

CME pumps typically include:

• Overload protection & thermal cutoffs

• Dry run detection

• Over-pressure / surge protection

• Motor temperature / winding monitoring

• Fault detection & diagnostics

• Anti-cavitation and stall prevention logic

• Soft stop / controlled deceleration

These protections help prolong lifespan and prevent damage in abnormal conditions.

Energy Efficiency & Variable Speed Control

One of the strongest advantages of CME pumps is energy saving. Because many systems don’t always require full flow or full head, running the pump at reduced speed can cut energy consumption dramatically—sometimes up to half compared to fixed-speed operation.

Additionally, built-in control means less wasted margin and better matching to system curves, reducing throttling losses.

Compactness & Footprint

By combining motor, electronics and hydraulics into one compact unit, the overall footprint is smaller compared to separately installed pump + VFD + control panel.

This is valuable when space is limited.

Quiet & Smooth Operation

Because of the advanced design, CME pumps tend to operate more quietly and with smoother transients (less surge, soft start/stop) compared to conventional pumps.

This is especially beneficial in residential, hospital or commercial settings where noise matters.

Reliability, Maintenance, and Serviceability

• Design features such as Nordlock washers ensure stable impeller clamping and easier disassembly.

• Mechanical shaft seal design often mitigates sticking (a known issue in some SIC-SIC designs) by employing rotation stops and varied surface finishes.

• Modular design allows replacement of specific parts rather than the whole unit.

• Diagnostic features help in early detection of issues, reducing downtime.

Smart / Intelligent Features

Because CME pumps include electronics, they can offer:

• Remote monitoring / telemetry

• Logging of faults / alarms / history

• Integration into building automation systems

• Adaptive control / self-learning modes

• Setpoint scheduling / demand-response

This intelligence makes CME suitable for “smart buildings” and advanced infrastructure.

CME pumps are extremely versatile. Here are key domains where they shine.

Building Services (Water Supply, Booster Systems)

In multi-storey buildings or complexes, maintaining stable pressure across varying demand is crucial. CME pumps are ideal for booster pump systems, adjusting speed to keep consistent pressure without over-pressurization or frequent cycling.

HVAC / Cooling & Heating Circuits

In HVAC systems with variable load (day/night, seasonal changes), CME pumps can adapt to changing flow demands in chilled water, condenser water or heating loops. This reduces energy use and improves comfort.

Irrigation & Farming

When watering schedules, zones, or demands vary, CME pumps can regulate flow to match real-time demand rather than running flat-out. This improves efficiency and prolongs equipment. (Note: ensure pump sizing for variations in drawdown, supply source, etc.)

Industrial Processes & Water Treatment

In treatment plants, the requirement for steady flow or pressure despite varying upstream or downstream demand makes CME pumps beneficial. They can also adapt to changing process needs.

Fire Fighting, Domestic Water, Pressure Boosting

In domestic or commercial water supply or fire booster systems, maintaining minimum pressure under all conditions is vital. CME pumps, especially those configured with backup or redundant operation, can help ensure reliability.

Selecting the right CME pump is critical. Mistakes lead to inefficiency, high wear, or failure. Here are key guidelines.

Flow / Head Requirements

• Determine required flow (Q) in m³/h or L/s (or GPM).

• Determine total head (H): static lift, friction losses, elevation changes.

• Add margin for future expansion or additional load.

Liquid Properties & Temperature

• Viscosity, density, presence of solids or abrasives

• Temperature limits (CME units may have limitations)

• Corrosiveness, pH, chemical compatibility

System Curve Matching

Plot system curve vs pump curve. The operating point should lie in the efficient region, not near maxima or minima where control or surge issues may occur.

Duty Cycle, Start-Stop Frequency

If frequent start/stop is expected, choose a CME variant rated for many duty cycles (e.g. CME Plus). Consider the soft start logic and control features. CME 5 Plus, for example, is designed to start/stop often without stress.

Materials, Corrosion, Sealing

Choose materials (cast iron, stainless steel, etc.) appropriate for fluid and environment. Ensure seals are appropriate (mechanical seals, dry-run resistant, etc.).

It is wise to consult manufacturer data sheets and work with suppliers.

Even the best pump can underperform if poorly installed.

Foundation & Mounting

• Ensure a rigid, level foundation to avoid misalignment or vibration.

• Use flexible couplings or baseplates as needed.

• Anchor properly to reduce resonance.

Piping Considerations & Flange Connections

• Keep suction piping as direct and short as possible to reduce losses and prevent cavitation.

• Use proper support for pipes (don’t let pipe loads stress pump flanges).

• Use flanged adapters that match standards (DIN, ANSI, JIS) per pump spec.

• Install valves, strainer, check valve, isolation valves per best practice.

Electrical Wiring & Control / PLC Integration

• Supply correct voltage, phase, and grounding.

• Size cables and protections for startup currents and continuous operation.

• Integrate control wiring to PLC or building management system.

• Follow manufacturer recommendations for cable length and shielding.

Commissioning & Parameter Setting

• Purge air, fill the system, and pre-check for leaks.

• Configure setpoints, ramp times, alarms, sensor calibration.

• Run initial trials, observe behavior at low, mid, and full loads.

• Adjust parameters as needed (PID tuning, soft limits).

Common Pitfalls & Remedies

• Cavitation due to poor suction design

• Oversizing control bandwidth (too aggressive control, causing oscillations)

• Thermal issues in enclosed spaces without ventilation

• Inadequate electrical protection

• Unbalanced loads or misalignment

A good commissioning checklist avoids many issues.

Startup & Shutdown Procedures

• Verify system is filled and vented.

• Start at lowest speed; gradually ramp to the desired setpoint.

• Monitor pressures, currents, vibration.

• On shutdown, decelerate softly to avoid water hammer or reverse flow.

Monitoring (Pressure, Flow, Current, Temperature)

• Continuously monitor system pressure, motor current, motor temperature, vibration, etc.

• Use alarms or automated shutdowns if thresholds are exceeded.

Preventive Maintenance Tasks

• Inspect seals periodically

• Lubricate bearings (if applicable)

• Clean strainers or filters

• Check cable connections and cooling ventilation

• Review logs & faults

• Plan for spare parts: impellers, seals, sensors

Troubleshooting Guide

Having a fault log helps diagnose intermittent issues.

CME vs Fixed-Speed Multistage Pumps (CM / Conventional)

• Advantages of CME: Energy savings, better flexibility, less control hardware.

• Disadvantages: Higher upfront cost, more complex electronics.

• For systems with variable load, CME often outperforms fixed-speed multistage pumps.

CME vs Variable Speed Single Stage Pumps

• Single-stage variable speed pumps may be simpler but less capable at very high head.

• For applications needing both moderate flow and high head, CME is more effective.

CME vs In-line Circulator Pumps

• Circulators are ideal in closed-loop heating/cooling systems, but may lack the head or flexibility of CME in some scenarios.

• CME is more robust for higher head or variable demand situations.

Choosing the right type depends on system profile, head, flow, and load variability.

How MHC Can Supply & Install CME Pumps

• MHC can act as procurement agent, sourcing CME units from trusted suppliers (e.g. Grundfos).

• Provide mechanical installation (foundation, piping) and electrical integration.

• Commission and handover the systems to clients.

Electromechanical Works & Controls Integration

• MHC can integrate CME pumps into broader electromechanical systems: PLC, SCADA, monitoring, alarms.

• Wiring, control panels, sensors, and field instrumentation are part of MHC’s core capabilities.

After-sales Support, Maintenance & Spare Parts

• Offer periodic maintenance contracts (checking seals, sensors, logs).

• Supply spare parts (seals, impellers, sensors).

• Remote monitoring / health check services for CME units installed by MHC.

IoT, Remote Monitoring & Digital Twins

The next generation of CME pumps will increasingly support IoT connectivity, advanced analytics, and digital twins, enabling predictive maintenance and fault anticipation.

Smart Grids & Demand Response

CME pumps might respond dynamically to energy tariffs, running at off-peak times, or adjusting to grid signals.

Materials & Corrosion Resistance

Future improvements may include more resistant materials or coatings to extend life in aggressive environments (saline water, chemicals).

Certification, Standards & Green Building Incentives

As energy efficiency and sustainability become more regulated, CME pumps (with documented savings) may help projects qualify for certifications (LEED, Green Star, etc.).

Contracting firms like MHC that offer advanced pump solutions will be in a strong competitive position.
