Thermal-Magnetic Circuit Breaker: Dual Protection for Your Electrical Systems
In a world brimming with electrical devices and systems, the importance of effective protection mechanisms stands out to ensure the safety of individuals and equipment. Among these mechanisms, the “thermal-magnetic circuit breaker” holds a prominent position due to its ability to provide dual protection against various electrical hazards.

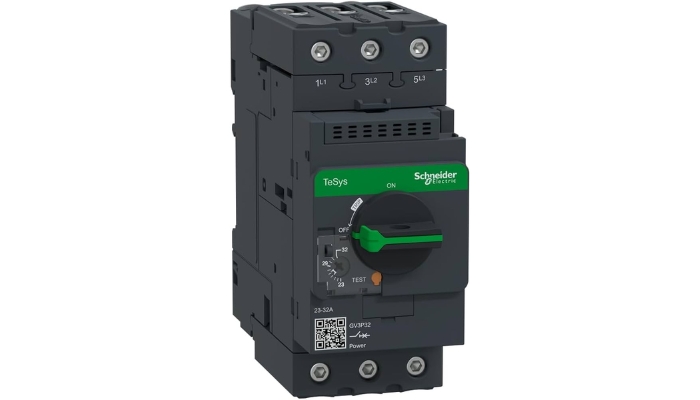

What is a Thermal-Magnetic Circuit Breaker?
A thermal-magnetic circuit breaker is an electrical protection device designed to automatically interrupt an electrical circuit in two main situations:
-
Overload: This occurs when an electrical system draws a current higher than the allowed limit for an extended period. The thermal part of the breaker, usually consisting of a bimetallic strip, heats up and bends due to the increased current, causing the circuit to trip. This mechanism provides protection against overheating of wires and equipment, which could lead to fires.
-
Short Circuit: This is a sudden flow of a large amount of electrical current through an unintended path with very low resistance. The magnetic part of the breaker, which consists of an electromagnet, responds rapidly to this sudden surge in current. A strong magnetic field is generated, attracting an armature that immediately trips the circuit, preventing severe damage to devices and wiring.
How Does It Work?
The thermal-magnetic circuit breaker relies on two principles in its operation:
-
Thermal Protection: When an excessive current flows continuously, the bimetallic strip inside the breaker heats up. The two different metals in the strip expand at different rates, causing it to bend. This bending moves the tripping mechanism of the breaker, interrupting the flow of electrical current. The tripping speed of the breaker depends on the amount of overcurrent; the higher the current, the faster the trip.
-
Magnetic Protection: In the event of a short circuit, the current rises dramatically and suddenly. This increased current passes through an electromagnetic coil inside the breaker, generating a strong magnetic field. This magnetic field attracts a metal core connected to the tripping mechanism, causing the circuit to trip almost instantaneously, regardless of the breaker’s rated current value.
Importance of the Thermal-Magnetic Circuit Breaker:
- Protection of Individuals: Significantly reduces the risk of electric shock and fires resulting from electrical faults.
- Protection of Equipment: Prevents damage to electrical devices and systems caused by overloads and short circuits, extending their lifespan and reducing maintenance and replacement costs.
- Safety and Reliability: Contributes to ensuring the safety and stability of electrical systems, reducing unexpected downtime.
- Ease of Use: Most thermal-magnetic circuit breakers can be manually reset after the cause of the trip has been corrected, making them more convenient than fuses that need replacement.
Applications:
Thermal-magnetic circuit breakers are widely used in various electrical applications, including:
- Residential Installations: To protect household electrical circuits and appliances.
- Commercial and Industrial Installations: To protect equipment and electrical systems in factories, offices, and shops.
- Electrical Distribution Boards: As an essential part of the protection system in main and sub-distribution boards.
- Electrical Appliances: Integrated into some electrical appliances to provide self-protection.
